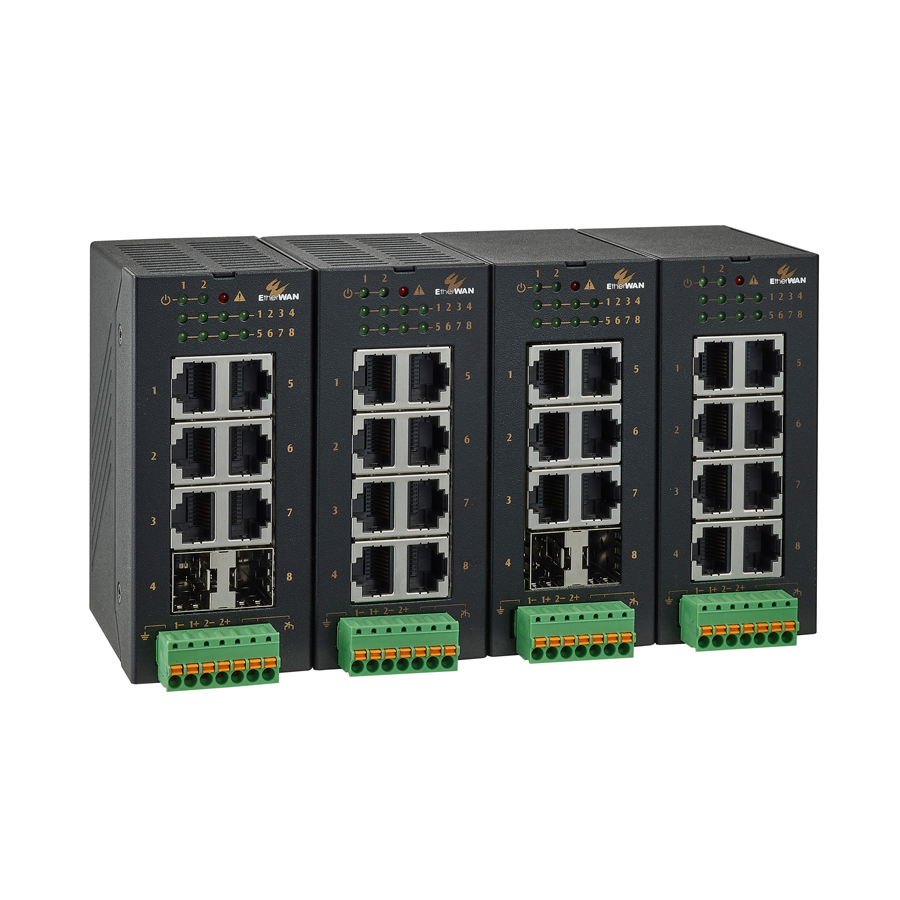

EtherWAN’s OttoE PoE H series is a hardened unmanaged Gigabit Ethernet switching platform, designed for easy deployment in harsh environments with limited space. Its operating temperature is ranging from - 40℃ to 75℃. It is a low-cost, easy-to-use device that combines essential industrial Ethernet networking functionality with rugged performance.

This versatile switch features full/half-duplex auto-negotiation and auto MDI/MDIX operation, allowing for convenient connection of a variety of network devices. QoS (Quality of Service) support allows for traffic prioritization and effective management of resources. A built-in watchdog feature supports the OttoE PoE H switch as an intelligent device to prevent packet loss from powered devices in the network. The feature can be enabled per port via DIP switch to enhance the feature flexibility.

EtherWAN — "When Connectivity is Crucial."

PoE Features

    • IEEE 802.3bt 90W per port
    • Total power budget up to 270W

PoE Watchdog (Patented)

    • Data streaming monitoring for connected PD

SFP Connectivity

    • Up to two 100/1000BASE SFP option

High Reliability

    • Industrial Fanless Design
    • 6Kv surge protection

Quality of Service

    • PROFINET, EtherNet/IP

Interface

  • Ethernet
    • 10/100/1000BASE-TX: 8 ports
    • 100/1000BASE-SFP: 0 or 2 ports
  • LED Indicators
    • Per Unit: Power 1 (Green), Power 2 (Green), Fault (Red)
    • Per Port: Link/Activity (Green)
  • Alarm Contact
    • One relay output with current 0.5A@48VDC
  • Dip Switch
    • No.1 - 8: Port 1 to 8 Watchdog ON/OFF
    • EXT: The timer enables Watchdog (ON: 5 min. / OFF: 10 min.)

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX/FX
    • IEEE 802.3az Energy Efficient Ethernet
    • IEEE 802.1p Quality of Service (QoS)
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3z 1000BASE-SX/1000BASE-LX
    • IEEE 802.3af/at/bt Power over Ethernet
  • Forward/Filtering Rate
    • 14,880pps for 10Mbps
    • 148,810pps for 100Mbps
    • 1,488,100pps for 1000Mbps
  • Packet Buffer Memory
    • 1.5M bits
  • Processing Type
    • Store-and-Forward
    • Auto Negotiation
    • Half-duplex back-pressure and IEEE
    • Auto MDI/MDIX
  • Address Table Size
    • 4K MAC

Environmental

  • Operating Temp.
    • -40 to 75°C (40 to 167°F)
  • Storage Temp.
    • -40 to 85°C (-40 to 185°F)
  • Relative Humidity
    • 5% to 95% (non-condensing)

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMI
    • FCC Part 15 Class A
    • VCCI Class A
    • EN 61000-6-4
    • ICES-003
    • EN 55032
  • EMS
    • EN 61000-6-2
      • - EN 61000-4-2 (ESD)
      • - EN 61000-4-3 (Radiated RFI)
      • - EN 61000-4-4 (Burst)
      • - EN 61000-4-5 (Surge)
      • - EN 61000-4-6 (Induced RFI)
      • - EN 61000-4-8 (Magnetic field)
  • Safety
    • UL 61010
  • Environmental Test Compliance
    • IEC 60068-2-6 Fc (Vibration)
    • IEC 60068-2-27 Ea (Shock)
    • FED STD 101C Method 5007.1 (Free fall w/package)
  • Industrial
    • EN 50121-4
  • Traffic
    • NEMA TS2 (TG103H)

Physical

  • Casing Material
    • Metal
  • IP Rating
    • IP30
  • Dimensions
    • 45x125x145mm (W x D x H) (1.77"x4.92"x5.71")
  • Weight
    • 577g (1.27lbs)
  • Installation Type
    • DIN-Rail (Top hat type 35mm) mounting

Warranty

What's Included

  • Device
    • Ethernet switch
  • Documentation
    • Quick install guide

OttoE PoE



Model

Gigabit Ethernet Models

TG103-08008-port 10/100/1000BASE-TX PoE Industrial (-10 to 60°C) Unmanaged Switch
TG103-08028-port 10/100/1000BASE-TX PoE + 2-port 100/1000BASE SFP Industrial (-10 to 60°C) Unmanaged Switch
TG103-04424-port 10/100/1000BASE-TX PoE + 4-port 10/100/1000BASE-TX + 2-port 100/1000BASE SFP Industrial (-10 to 60°C) Unmanaged Switch
TG103H-08008-port 10/100/1000BASE-TX PoE Hardened (-40 to 75°C) Unmanaged Switch
TG103H-08028-port 10/100/1000BASE-TX PoE + 2-port 100/1000BASE SFP Hardened (-40 to 75°C) Unmanaged Switch
TG103H-04424-port 10/100/1000BASE-TX PoE + 4-port 10/100/1000BASE-TX + 2-port 100/1000BASE SFP Hardened (-40 to 75°C) Unmanaged Switch
Part NumberSpeed InfoSpeed InfoDistanceOperating TemperatureWavelengthDDM
EX-0155NSP-MB2L-A100MbpsMulti2km-40 to 85°C1310nm
SFPMIS20M100MbpsSingle20km-40 to 85°C1310nm✔
SFPGIM5AM1000MbpsMulti275m/550m-40 to 85°C850nm✔
SFPGIM02M1000MbpsMulti2km-40 to 85°C1310nm✔
SFPGIS10M1000MbpsSingle10km-40 to 85°C1310nm✔



Optional Accessories

NDR-480-48480W 48VDC DIN-Rail Power Supply



100BASE SFP Moduleswww.etherwan.com/products/sfp-fiber-transceiver
Gigabit SFP Moduleswww.etherwan.com/products/sfp-fiber-transceiver
