EW200 系列
工業級 LTE Cellular 行動通訊及WiFi 閘道器
不適用美加地區
符合全球LTE通訊標準及高效能WiFi
全方位資安防護
Event Engine：斷線警告系統
工業等級設計
EW200為一款智慧型工業級行動通訊閘道器，針對公共基礎建設及各類工業應用環境設計安全。內建四組高速乙太網路傳輸埠，提供高速可靠的資料傳輸，即時IT斷線警告，最適合遠端安全監控管理。
多種通訊協定介面：無線、乙太網路、串列訊號和digital I/O供最佳傳輸品質，可滿足多種應用環境。符合全球LTE通訊標準，可快速佈建易於管理的遠距行動通訊網路架構。
EW200 Series
Industrial LTE Cellular Gateway
多元介面彈性搭配
» 提供乙太網路、串列I/O(RS232/RS485)及支援業界最普遍的通訊協定Modbus TCP 以利串接各式周邊裝置
» 虛擬COM可存取、控制及管理連接之串列設備

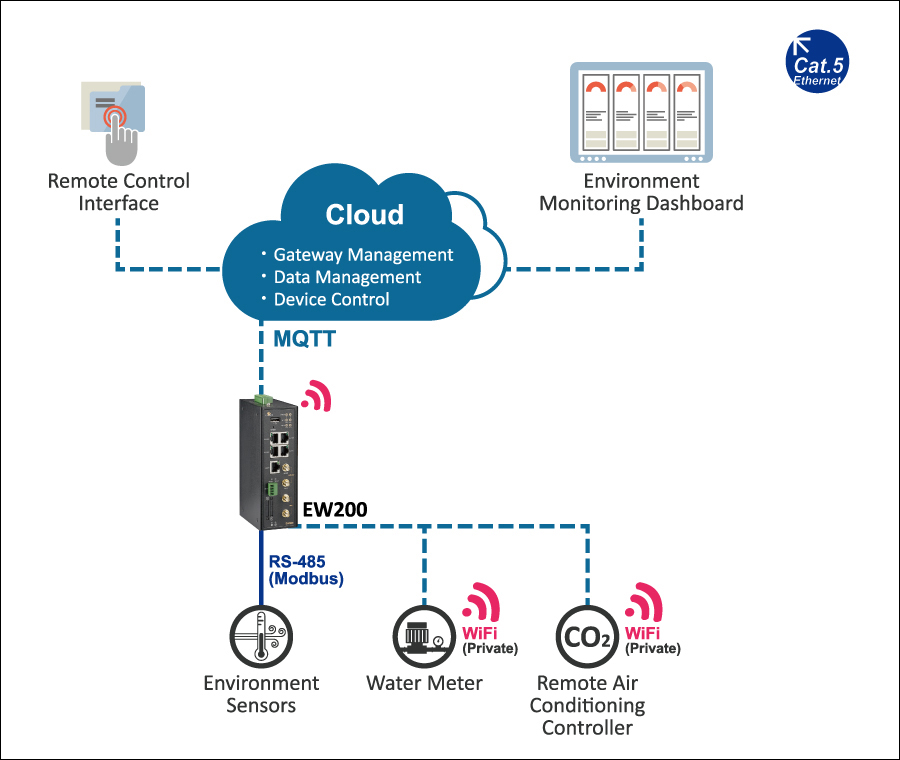

» 完美應用於M2M(機器對機器) 及IIoT(工業物聯網)應用架構
可靠、不間斷的傳輸品質
» 雙SIM卡設計，可支援行動傳輸備援
» Fail over管理機制確保網路穩定可靠度
» 支援Gigabit 乙太網路、內建備援協定VRRP及回復機制，使遠端設備和控制中心在安全防護下提供可靠的行動通訊
全面資安防護
» 支援IPSec, OpenVPN, PPTP, L2TP, VPN。可同時建立多達16個VPN通道，最大流量可達100Mbps(IPSec)
工業等級設計
» IP30、無風扇、金屬外殼設計
» 支援-30到70°C操作溫度
» 雙電源輸入備援機制(透過端子台)
| 4G LTE | 3G | 2G | 地區 | ||
| Sku Code | FDD LTE | TDD LTE | WCDMA | GSM/EDGE | |
| TA | B1(2100)/ 3(1800)/ 4(AWS)/ 5(850)/ 7(2600)/ 8(900)/ 28(700 APT) | B40(2300) | B1(2100)/ 2(1900)/ 5(850)/ 8(900) | B2(1900)/ 3(1800)/ 5(850)/ 8(900) | Taiwan |
| EUS | B1(2100)/ 3(1800)/ 5(850)/ 7(2600)/ 8(900)/ 20(800) | B38(TD 2600)/ 40(TDV 2300)/ 41(TD 2500) | B1/ B5/ B8 | B3(1800)/ 8(900) | EU, Vietnam, Thailand |
Cellular Interface
- 標準
- • Cellular Frequency Bands: (Please see order information for optional band)
- • LTE Cat. 4: FDD-LTE, TDD-LTE, Transfer rate (max):
LTE FDD: 150Mbps down; 50Mbps up
LTE TDD: 130Mbps down; 35Mbps up - • 3G: WCDMA, Transfer rate (max): 42Mbps down; 5.76Mbps up
- • 2G: GSM/EDGE, Edge Transfer rate (max): 236.8Kbps down & up
- Antenna connector
- • 2 x SMA Female
- SIM Slot
- • 2
WLAN Interface
- WiFi
- • 802.11 a/b/g/n/ac 2T2R (2.4G/5GHz selectable)
- Frequency Band
- • Europe CE 2.4GHz (13 channels) 5GHz (4 channels)
- • America FCC 2.4GHz (11 channels) 5GHz (9 channels)
- • Taiwan NCC 2.4GHz (11 channels) 5GHz (9 channels)
- • Singapore iDA 2.4GHz (13 channels) 5GHz (9 channels)
- • Japan TELEC & JATE 2.4GHz (13 channels) 5GHz (19 channels)
- Encryption Security
- • WEP, WPA 1/2-PAK & WPA 1/2 (8 x VAP/SSID)
- Antenna Connector
- • 2 x SMA Male
Ethernet
- 標準
- • IEEE 802.3 10Base-T
- • IEEE 802.3u 100BASE-TX/100BASE-FX
- • IEEE 802.3ab 1000BASE-T
- • IEEE 802.1x, Full duplex flow control
- Ports
- • 1 x RJ45 GE (WAN/LAN configurable) +4 x RJ45 GE
- Physical Layer
- • 10/100/1000Base-T
Serial
- Ports
- • 1 x RS232/RS485
I/O
- DI/DO
- • 1 x Digital In ("Logic 0": 0-2V, "Logic 1": 5V-30V)
1 x Digital Out (Relay Mode, up to 30V/1A)
USB
- 標準
- • USB 2.0
- Ports
- • 1 x USB Type A
Functions
- WiFi LAN
- • AP Router, WDS, WDS Hybrid Modes
- VLAN
- • Port-based, Tag-based VLAN
- Port Forwarding
- • Virtual Server/Computer, DMZ Host, PPTP/L2TP/IPSec Pass-through
- Routing
- • Static, Dynamic: RIP1/RIP2, OSPF, BGP
- QoS
- • Policy-based Bandwidth Control and Packet Flow Prioritization
- VPN
- • IPSec, OpenVPN, PPTP, L2TP, GRE
- Firewall
- • SPI Firewall with Stealth Mode, IPS
- Event Engine/Event Handling
- • Managing/Notifying Events: DI, DO, Modbus, SMS, Syslog, SNMP Trap, Email Alert, Reboot
- Device Management Solution
- • eVue (Q1, 2019)
Field Communication
- Virtual COM
- • RFC2217, TCP Client, TCP Server, UDP
- Modbus
- • Gateway for Modbus TCP, Modbus RTU/ASCII Master/Slave Access
- • Slave for Device Status/Information Access
- Data Interchange
- • OPC UA Server, MQTT Broker, MQTT Client
- Data Logging
- • Sniffer, Off-line/Full-time Proxy, Mixed modes
電源
- 輸入電壓
- • DC 12V-48V (Terminal Block)
- 電力功耗
- • 25W Max.
機構
- 尺寸
- • 62 x 135 x 160mm (with DIN-Rail kit)
- 重量
- • 1.2Kg (2.64lb)
- 安裝方式
- • DIN-Rail
環境
- 工作溫度
- • -30 to 70°C (-22 to 158°F)
- 儲存溫度
- • -40 to 85°C (-40 to 185°F)
- 工作濕度
- • 5% to 95% (無凝結)
通過認證
- Safety
- EN 60950-1
- EN 62368-1: 2014
- Emissions/Immunity
- CE/NCC BSMI/NBTC
型號
| EW200-EUS | Industrial LTE Cellular Gateway-EUROPE & SOUTH ASIA |
| EW200-TA | Industrial LTE Cellular Gateway-TAIWAN |
Optional Accessories
| GWAP-2 | Item | Amount | Frequency | Description | Note |
 | LTE | 2 | 698-960/ 1710-2170/ 2300-2690MHz | Cellular Omni Antenna, N/female Jack Bulkhead | IP67 |
| Wi-Fi Antenna | 2 | 2.4-2.5/ 4.9-5.9GHz | Wi-Fi Omni Antenna, N/female Jack | IP67 | |
| Surge Protector | 4 | - | 0-6GHz Surge Lightning Protector, N/female Jack Bulkhead To N/male Plug | IP67 | |
| Bracket | 4 | - | - | - | |
| Wi-Fi Cable | 2 | - | SMA/female Plug (reverse) To N/male Plug with NFC200 Cable | - | |
| LTE Cable | 2 | - | SMA/male Plug To N/male Plug with NFC200 Cable | - |
| P/N. | Image | Item | Amount | Frequency | Description | Note |
| W96G-GY113HT46 |  | Cellular Antenna Base | 1 | - | This antenna base can be used on EW50 / EW200 / AiR PACE LTE antenna to extend 1.5M. Each model needs 2 antenna bases. This antenna base is not IP67. | - |
| W96G-11361Y50V |  | Wall Mount Kit | 1 set | - | 1 set package includes 2 wall mount (Right side & Left side) & 4 pcs screws | - |
