EX73900E 系列
強固級網管型 10-16埠 Gigabit 乙太網路交換器
IP40 Protection Level
Integrated with 2 DIs (Digital Input) and 2 Relay Output
Supports static routes, RIP v1/v2, and VRRP
Dual Rate SFP Fiber
EtherWAN’s EX73900E series is a hardened DIN-rail mounted managed Ethernet switch platform. Equipped with up to 12 gigabit Ethernet and 4 dual-rate gigabit SFP ports, the EX73900E series provides flexibility, speed, and reliability to support networks for urban infrastructure, transportation, security, power substations, and other areas where connectivity is crucial.
EtherWAN — "When Connectivity is Crucial."
High Bandwidth and Versatility
- 8 or 12 10/100/1000BASE-T(X) ports for High bandwidth connections
- Up to 4 Dual-rate 100/1000BASE SFP uplink ports for fiber connections
- Full capacity switching running at full duplex
Hardened-Grade for Non-Ventilated & Harsh Environments
- Wide operating temperature range -40 to 75°C (-40 to 167°F)
- Fanless operation
- High impact, thermal shock, and electrical noise resistance
Lite Layer 3 Functionality
- Static routing, RIP v1/v2, and OSFP support
- Redundancy with VRRP
- Reduces amount of broadcast traffic
Compliance
- IEC 61850-3/IEEE 1613 certified for power substations
- NEMA TS2 rated
- UL certified for safety
Management/Security Features
- Port control
- Dying gasp feature provides SNMP trap upon power off
- Configure and monitor with eVue™ and eLite™
Support
- Complimentary Technical Support
- Free Firmware Upgrades
- Limited Lifetime Warranty
Interface
- CLI, Telnet, Web GUI
Management
- Firmware upgrade
- Configuration backup
- DHCP Server/Client
- RMON (Remote Monitoring)
- Port Mirroring
- NTP (Network Time Protocol) synchronization
- LLDP (Link Layer Discovery Protocol)
- IPv4/IPv6
- SNMP v1/v2c/v3
Security
- MAC Address filtering
- Enable/Disable port
- Storm control
- System logging
- IEEE 802.1x LAN Access control
- Remote authentication through RADIUS and TACACS+
- Complex password support
- Multi-user login and privileged access management
- SSH for CLI and Telnet security
- SSL and HTTPS for web security
- ACL (Access Control List, up to 4096 entries)
Quality of Service (QoS)
- Priority Queues: 8 queues per port
- Traffic classification based on IEEE 802.1p CoS (Cost of Service), DSCP (Differentiated Services Code Point), WRR (Weighted Round Robin), and strict mode
- Rate Limiting (Ingress/Egress)
Layer 2 Features
- Auto-negotiation for port speed and duplex
- Flow Control
- IEEE 802.3x full duplex mode
- Back-pressure half duplex mode
- Redundant Protocols
- IEEE 802.1D STP
- IEEE 802.1w RSTP
- IEEE 802.1s MSTP
- EtherWAN's Alpha-Ring network fault recovery
- VLANs
- IEEE 802.1Q Tag VLANs
- GVRP
- GMRP
- Link Aggregation
- Static Trunk (4 groups)
- IEEE 802.3ad LACP
- IGMP Snooping v1/v2/v3
Layer 3 Features
- IP Packet Routing
- Maximum number of routes in hardware: 64 entries
- Static Routing
- RIP v1/v2
- OSPF v2
- Routing Redundancy
- VRRP
Software Properties and Performance
- Switching Fabric
- 32Gbps
- Forwarding Rate
- 23.5Mpps
- Total VLAN Entries
- 256 (4096 VID)
- Jumbo Frame Size
- 9KB
- MAC Table Size
- 16K
- Packet Buffer Memory
- 12M bits
Interface
- Ethernet
- 8 or 12 x 10/100/1000BASE-T(X)
- 2 or 4 x 100/1000BASE SFP
- Console
- 1 x RJ45

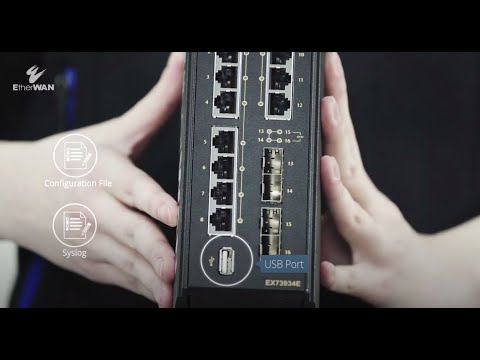

- Config Backup
- 1 x USB (Type A Connector)
- Digital Input
- 2 x Digital Input
- Wet Contact: 0-3V for State 0; 13-30V for State 1; Max Input Current: 8mA
- Dry Contact: Logic Level 1–Close to GND; Logic Level 0-Open
- Alarm Contact
- 2 x Relay output, current capacity 0.6A/30VDC
- LED Indicators
- Per Unit: Power 1, Power 2, Alarm
- Per Port: Link/Activity
Technology
- Standards
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX/100BASE-FX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3ad link aggregation control
- IEEE 802.3z 1000BASE-SX/1000BASE-LX
- IEEE 802.3x full duplex and flow control
- IEEE 802.1D STP
- IEEE 802.1p QoS
- IEEE 802.1Q Tag VLANs
- IEEE 802.1s MSTP
- IEEE 802.1w RSTP
- IEEE 802.1x PNAC
- IEEE 802.1ab LLDP
- Forward/Filtering Rate
- 14,880pps for 10Mbps
- 148,810pps for 100Mbps
- 1,488,100pps for 1000Mbps
- Processing Type
- Store-and-forward
- Auto-negotiation
- Half-duplex back-pressure and full-duplex flow control
- Auto MDI/MDIX
- System Memory
- 2Gb DDR3 SDRAM
- Flash Storage
- 1Gb
Power
- Input
- 12-48VDC Redundant (Terminal block)
- Power Consumption
- 20W Max
- Protection
- Reverse Polarity Protection
- Overload Current Protection
Physical
- Casing Material
- Aluminum
- IP Rating
- IP40
- Dimensions
- 72 x 140 x 170mm (W x D x H)
2.8" x 5.5" x 6.7"
- 72 x 140 x 170mm (W x D x H)
- Weight
- 1.4kg (3.08lbs)
- Installation Type
- DIN-rail mounting
Environmental
- Operating Temp.
- -40 to 75°C (-40 to 167°F)
- Storage Temp.
- -45 to 85°C (-49 to 185°F)
- Relative Humidity
- 5% to 95% (non-condensing)
Regulatory
- ISO
- Manufactured in ISO-9001 facility
- EMI
- FCC Part 15B Class A
- VCCI Class A
- EN 61000-6-4
- EN 61000-3-2
- EN 61000-3-3
- EMS
- EN 61000-6-2
- EN 61000-4-2 (ESD)
- EN 61000-4-3 (Radiated RFI)
- EN 61000-4-4 (Burst)
- EN 61000-4-5 (Surge)
- EN 61000-4-6 (Induced RFI)
- EN 61000-4-8 (Magnetic field)
- Safety
- UL 61010
- Traffic
- NEMA TS2
- Rail
- EN 50121-4
- Power Substation
- IEC 61850-3/IEEE 1613
- Vibration
- IEC 60068-2-6
- Shock
- IEC 60068-2-27
- Free Fall
- FED STD 101C Method 5007.1
Warranty
- Length
- Limited Lifetime
- Details
What's Included
- Device
- Ethernet Switch
- Cables
- 1 Console Cable
- Installation
- Mounting brackets, screws
- Documentation
- Quick install guide
| Network Management | eVue™ Network Configuration and Monitoring Tool |
| Network Discovery | eLite™ Network Discovery and IP Configuration Tool |
Model
| EX73934E-0VB | 12-port 10/100/1000BASE-T(X) + 4-port 100/1000BASE SFP |
| EX73924E-0VB | 8-port 10/100/1000BASE-T(X) + 4-port 100/1000BASE SFP |
| EX73922E-0VB | 8-port 10/100/1000BASE-T(X) + 2-port 100/1000BASE SFP |
Accessories
| Hardened 100BASE SFP Modules | www.etherwan.com/products/sfp-fiber-transceiver |
| Hardened Gigabit SFP Modules | www.etherwan.com/products/sfp-fiber-transceiver |
| DIN-Rail Power Supplies | www.etherwan.com/products/din-rail-power-supply (*) |
| *Recommended Power Supply | EX41-145046 Power Supply 45W 12VDC with Open Wire |
