EX77964

Lite L3 強固級網管型 24埠Gigabit +4埠1G/10G SFP 乙太網路交換器
10G
SFP
Fanless
alpha-ring
Wide Temperature
NEMA-TS2
UL 62368
UL
支援靜態路由、RIP V1/V2和VRRP
雙速(Dual rate) SFP埠: 1G埠(100M/1G)和10G埠(1G/10G)
19吋短機殼設計，深度254mm，可安裝於小型機箱內
Related Products
Gigabit 乙太網路交換器
(20)
1G/10G SFP+ 乙太網路交換器
(8)
Layer 3 乙太網路交換器
(12)
Downloads
DatasheetQIGManualsFirmwareVisio Stencil
訂購諮詢

益網科技EX77964系列，為一款強固等級設計、full-Gigabit並結合Layer3路由協定功能的乙太交換器。支援靜態路由、路由信息協議(RIP) V1/V2和虛擬路由備援協定(VRRP)，確保資訊傳輸的高安全性及最佳的成本效益。

EX77964系列可依需求挑選28個Gigabit埠，或24個網路埠搭配4個10G SFP+ 等多種組合，254mm深度之特殊短機殼設計，適合安裝於小型機箱內。完整的管理功能和組合，支援port security, IGMP snooping, port-based VLAN, GARP 協定, link aggregation 及 ACL, 網路瀏覽介面, telnet, SSH, SNMP, RMON, TFTP, 和RS-232 管理介面。強固等級設計，可於-40 到75°C之寬溫環境下穩定運作。

EtherWAN — "When Connectivity is Crucial."

Hardened-Grade for Non-Ventilated & Harsh Environments

  • Wide operating temperature range -40 to 75°C (-40 to 167°F)
  • Fanless operation
  • High impact, thermal shock, and electrical noise resistance

High Bandwidth and Versatility

  • Up to 24 10/100/1000BASE-T(X) ports
  • Up to 8 dual-rate 100/1000BASE SFP ports
  • 4 1G/10G SFP+ uplink ports

Lite Layer 3 Functionality

  • Static routing, RIP v1/v2, and OSFP support
  • Redundancy with VRRP
  • Reduces amount of broadcast traffic

Support

  • Complimentary Technical Support
  • Free Firmware Upgrades
  • Limited Lifetime Warranty

Interface

  • CLI, Telnet and Web Browser
  • SNMP v1/v2c/v3

Management

  • Firmware upgrade
  • Configuration backup via TFTP
  • DHCP Server/Client
  • RMON (Remote Monitoring)
  • Port Mirroring: TX/RX and both
  • NTP (Network Time Protocol) synchronization
  • IEEE 802.1ab LLDP (Link Layer Discovery Protocol)
  • IPv4/IPv6

Security

  • MAC Address Filtering
  • Enable/Disable port
  • Storm control (Broadcast and multicast types)
  • IEEE 802.1x LAN Access Control
  • Remote authentication through RADIUS and TACACS+
  • SSH for CLI and Telnet security
  • SSL for web security
  • ACL (Access Control List)

Quality of Service (QoS)

  • Priority Queues: 4 queues per port
  • Traffic classification based on IEEE 802.1p CoS, DSCP, WRR and strict mode
  • Rate Limiting (Ingress/Egress)

Layer 2 Features

  • Auto-negotiation for port speed and duplex mode
    • Flow Control
    • IEEE 802.3x Full duplex mode
    • Back-Pressure half duplex mode
  • Redundant Protocols
    • IEEE 802.1D STP
    • IEEE 802.1w RSTP
    • IEEE 802.1s MSTP

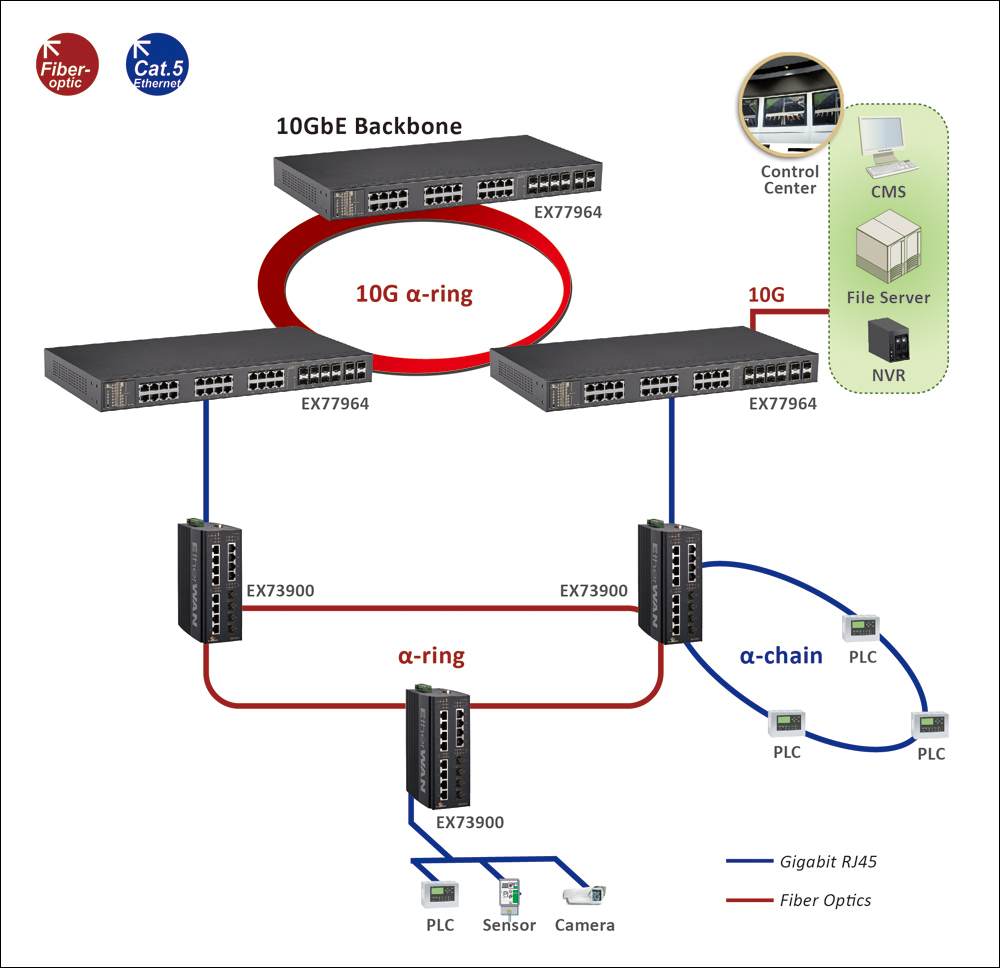

    • EtherWAN's Alpha-Ring network fault recovery (<15ms) and Alpha-Chain
  • VLANs
    • IEEE 802.1Q Tag VLANs (128 groups, 4096 VID)
    • GVRP
    • GMRP
  • Link Aggregation
    • Static Trunk (4 groups, support MAC base)
    • IEEE 802.3ad LACP
  • IGMP Snooping v1/v2/v3

Layer 3 Features

  • IP Packet Routing
    • Maximum number of routes in hardware: 64 entries
    • Static Routing
    • RIP v1/v2
    • OSPF v2
  • Routing Redundancy
    • VRRP


Interface

  • Ethernet
    • 16 or 24 x 10/100/1000BASE-T(X)
    • 8 x 100/1000BASE SFP
    • 4 x 10G SFP+
  • Console
    • 1 x RJ45 RS-232
  • Config Backup
    • 1 x USB (Type A Connector)
  • Alarm Contact
    • 1 x Relay output, current capacity 0.6A/30VDC
  • LED Indicators
    • Per Unit: Power
    • Per Port: Link/Activity (Green)

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX/100BASE-FX
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3z 1000BASE-SX/1000BASE-LX
    • IEEE 802.3x Full duplex and flow control
    • IEEE 802.1p QoS
    • IEEE 802.1Q Tag VLANs
    • IEEE 802.1w RSTP
    • IEEE 802.1x PNAC
  • Forward/Filtering Rate
    • 14,880pps for 10Mbps
    • 148,810pps for 100Mbps
    • 1,488,100pps for 1000Mbps
    • 14,881,000pps for 10Gbps
  • Processing Type
    • Store-and-Forward
    • Auto-negotiation
    • Half-duplex back-pressure and IEEE 802.3x Full-duplex flow control
    • Auto MDI/MDIX
  • Address Table Size
    • 16K MAC Addresses

Power

  • Input
    • 12-24VDC Redundant (Terminal block)
  • Power Consumption
    • 31.08W

Physical

  • Casing Material
    • Metal
  • IP Rating
    • IP30

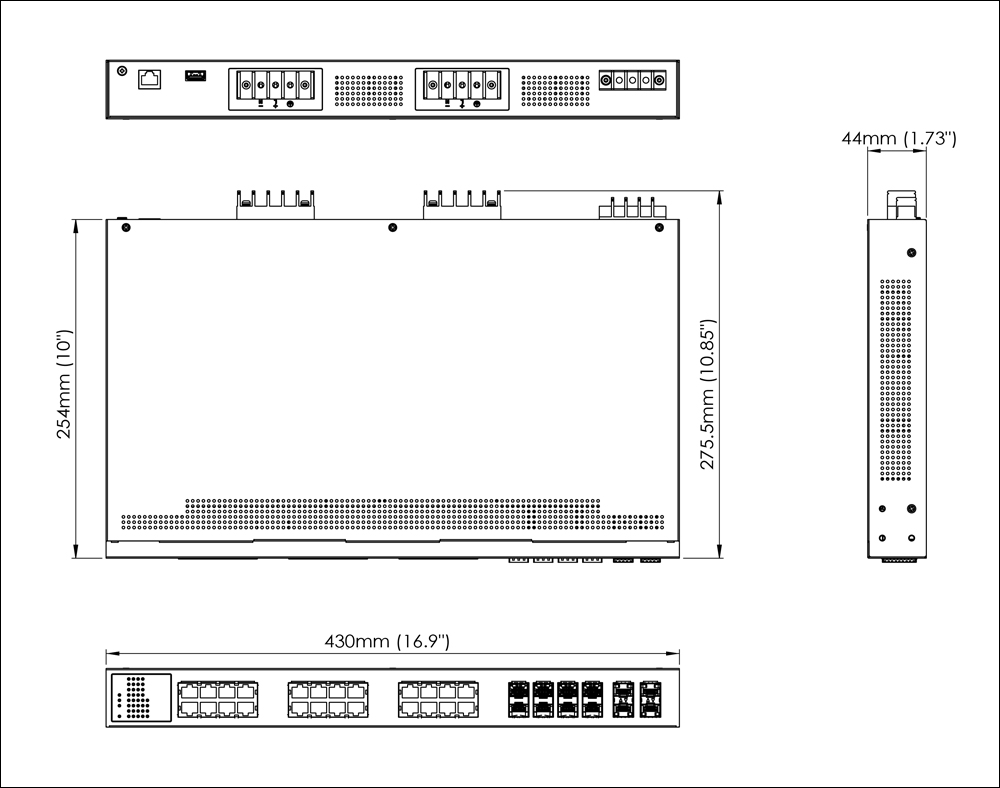

  • Dimensions
    • 430 x 254 x 44.2mm (W x D x H)
      16.9" x 10" x 1.74"
  • Weight
    • 3.29Kg (7.25lbs)
  • Installation Type
    • Rack mounting

Environmental

  • Operating Temp.
    • -40 to 75°C (-40 to 167°F)
  • Storage Temp.
    • -45 to 85°C (-49 to 185°F)
  • Relative Humidity
    • 5% to 95% (non-condensing)

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMI
    • FCC Part 15B Class A
    • VCCI Class A
    • EN 61000-6-4
    • EN 61000-3-2
    • EN 61000-3-3
  • EMS
    • EN 61000-6-2
    • EN 61000-4-2 (ESD)
    • EN 61000-4-3 (Radiated RFI)
    • EN 61000-4-4 (Burst)
    • EN 61000-4-5 (Surge)
    • EN 61000-4-6 (Induced RFI)
    • EN 61000-4-8 (Magnetic Field)
  • Safety
    • UL 62368
  • Vibration
    • IEC 60068-2-6 Fc
  • Shock
    • IEC 60068-2-27 Ea
  • Free Fall
    • FED STD 101C Method 5007.1
  • Industrial Compliance
    • NEMA TS2

Warranty

What's Included

  • Device
    • Ethernet Switch
  • Cables
    • 1 Console Cable
  • Installation
    • Mounting brackets
  • Documentation
    • Quick Install Guide

Model

EX77964-8VB16-port 10/100/1000BASE-TX + 8-port 100/1000BASE SFP Combo + 4-port 1G/10G SFP+ (12-24VDC)

Accessories

Hardened 100BASE SFP Moduleswww.etherwan.com/products/sfp-fiber-transceiver
Hardened Gigabit and 10-Gigabit SFP Moduleswww.etherwan.com/products/sfp-fiber-transceiver
DIN-Rail Power Supplieswww.etherwan.com/products/din-rail-power-supply (*)
*Recommended Power SupplyHDR-60-24 60W 24VDC DIN-Rail Power Supply
EB-232Configuration Backup and Restoration Tool

益網科技EX77964系列，為一款強固等級設計、full-Gigabit並結合Layer3路由協定功能的乙太交換器。支援靜態路由、路由信息協議(RIP) V1/V2和虛擬路由備援協定(VRRP)，確保資訊傳輸的高安全性及最佳的成本效益。

EX77964系列可依需求挑選28個Gigabit埠，或24個網路埠搭配4個10G SFP+ 等多種組合，254mm深度之特殊短機殼設計，適合安裝於小型機箱內。完整的管理功能和組合，支援port security, IGMP snooping, port-based VLAN, GARP 協定, link aggregation 及 ACL, 網路瀏覽介面, telnet, SSH, SNMP, RMON, TFTP, 和RS-232 管理介面。強固等級設計，可於-40 到75°C之寬溫環境下穩定運作。

EtherWAN — "When Connectivity is Crucial."

Hardened-Grade for Non-Ventilated & Harsh Environments

  • Wide operating temperature range -40 to 75°C (-40 to 167°F)
  • Fanless operation
  • High impact, thermal shock, and electrical noise resistance

High Bandwidth and Versatility

  • Up to 24 10/100/1000BASE-T(X) ports
  • Up to 8 dual-rate 100/1000BASE SFP ports
  • 4 1G/10G SFP+ uplink ports

Lite Layer 3 Functionality

  • Static routing, RIP v1/v2, and OSFP support
  • Redundancy with VRRP
  • Reduces amount of broadcast traffic

Support

  • Complimentary Technical Support
  • Free Firmware Upgrades
  • Limited Lifetime Warranty

Interface

  • CLI, Telnet and Web Browser
  • SNMP v1/v2c/v3

Management

  • Firmware upgrade
  • Configuration backup via TFTP
  • DHCP Server/Client
  • RMON (Remote Monitoring)
  • Port Mirroring: TX/RX and both
  • NTP (Network Time Protocol) synchronization
  • IEEE 802.1ab LLDP (Link Layer Discovery Protocol)
  • IPv4/IPv6

Security

  • MAC Address Filtering
  • Enable/Disable port
  • Storm control (Broadcast and multicast types)
  • IEEE 802.1x LAN Access Control
  • Remote authentication through RADIUS and TACACS+
  • SSH for CLI and Telnet security
  • SSL for web security
  • ACL (Access Control List)

Quality of Service (QoS)

  • Priority Queues: 4 queues per port
  • Traffic classification based on IEEE 802.1p CoS, DSCP, WRR and strict mode
  • Rate Limiting (Ingress/Egress)

Layer 2 Features

  • Auto-negotiation for port speed and duplex mode
    • Flow Control
    • IEEE 802.3x Full duplex mode
    • Back-Pressure half duplex mode
  • Redundant Protocols
    • IEEE 802.1D STP
    • IEEE 802.1w RSTP
    • IEEE 802.1s MSTP
    • EtherWAN's Alpha-Ring network fault recovery (<15ms) and Alpha-Chain
  • VLANs
    • IEEE 802.1Q Tag VLANs (128 groups, 4096 VID)
    • GVRP
    • GMRP
  • Link Aggregation
    • Static Trunk (4 groups, support MAC base)
    • IEEE 802.3ad LACP
  • IGMP Snooping v1/v2/v3

Layer 3 Features

  • IP Packet Routing
    • Maximum number of routes in hardware: 64 entries
    • Static Routing
    • RIP v1/v2
    • OSPF v2
  • Routing Redundancy
    • VRRP


Interface

  • Ethernet
    • 16 or 24 x 10/100/1000BASE-T(X)
    • 8 x 100/1000BASE SFP
    • 4 x 10G SFP+
  • Console
    • 1 x RJ45 RS-232
  • Config Backup
    • 1 x USB (Type A Connector)
  • Alarm Contact
    • 1 x Relay output, current capacity 0.6A/30VDC
  • LED Indicators
    • Per Unit: Power
    • Per Port: Link/Activity (Green)

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX/100BASE-FX
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3z 1000BASE-SX/1000BASE-LX
    • IEEE 802.3x Full duplex and flow control
    • IEEE 802.1p QoS
    • IEEE 802.1Q Tag VLANs
    • IEEE 802.1w RSTP
    • IEEE 802.1x PNAC
  • Forward/Filtering Rate
    • 14,880pps for 10Mbps
    • 148,810pps for 100Mbps
    • 1,488,100pps for 1000Mbps
    • 14,881,000pps for 10Gbps
  • Processing Type
    • Store-and-Forward
    • Auto-negotiation
    • Half-duplex back-pressure and IEEE 802.3x Full-duplex flow control
    • Auto MDI/MDIX
  • Address Table Size
    • 16K MAC Addresses

Power

  • Input
    • 12-24VDC Redundant (Terminal block)
  • Power Consumption
    • 31.08W

Physical

  • Casing Material
    • Metal
  • IP Rating
    • IP30
  • Dimensions
    • 430 x 254 x 44.2mm (W x D x H)
      16.9" x 10" x 1.74"
  • Weight
    • 3.29Kg (7.25lbs)
  • Installation Type
    • Rack mounting

Environmental

  • Operating Temp.
    • -40 to 75°C (-40 to 167°F)
  • Storage Temp.
    • -45 to 85°C (-49 to 185°F)
  • Relative Humidity
    • 5% to 95% (non-condensing)

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMI
    • FCC Part 15B Class A
    • VCCI Class A
    • EN 61000-6-4
    • EN 61000-3-2
    • EN 61000-3-3
  • EMS
    • EN 61000-6-2
    • EN 61000-4-2 (ESD)
    • EN 61000-4-3 (Radiated RFI)
    • EN 61000-4-4 (Burst)
    • EN 61000-4-5 (Surge)
    • EN 61000-4-6 (Induced RFI)
    • EN 61000-4-8 (Magnetic Field)
  • Safety
    • UL 62368
  • Vibration
    • IEC 60068-2-6 Fc
  • Shock
    • IEC 60068-2-27 Ea
  • Free Fall
    • FED STD 101C Method 5007.1
  • Industrial Compliance
    • NEMA TS2

Warranty

What's Included

  • Device
    • Ethernet Switch
  • Cables
    • 1 Console Cable
  • Installation
    • Mounting brackets
  • Documentation
    • Quick Install Guide

Model

EX77964-8VB16-port 10/100/1000BASE-TX + 8-port 100/1000BASE SFP Combo + 4-port 1G/10G SFP+ (12-24VDC)

Accessories

Hardened 100BASE SFP Moduleswww.etherwan.com/products/sfp-fiber-transceiver
Hardened Gigabit and 10-Gigabit SFP Moduleswww.etherwan.com/products/sfp-fiber-transceiver
DIN-Rail Power Supplieswww.etherwan.com/products/din-rail-power-supply (*)
*Recommended Power SupplyHDR-60-24 60W 24VDC DIN-Rail Power Supply
EB-232Configuration Backup and Restoration Tool
