EX46910
NEW
Hardened Unmanaged 8-Port Gigabit PoE and 2-Port Gigabit RJ45/SFP Combo Ethernet Switch
Only Available in North America
Hardened-grade for non-ventilated and harsh environments
Up to 30W power output for PTZ cameras and other security applications
Combo RJ45/SFP uplink ports provide flexibility for data transmission
High-Power PoE (Power over Ethernet)
- Up to 30W output for various security applications such as PTZ cameras
- Total PoE power budget of 240W available
- Backward compatible with 802.3af devices
Hardened-Grade for Non-Ventilated & Harsh Environments
- Wide operating temperature range -40 to 75°C (-40 to 167°F)
- Fanless operation
- High impact, thermal shock, and electrical noise resistance
Support
- Complimentary Technical Support
- In-person training and free online training courses available
- Limited Lifetime Warranty

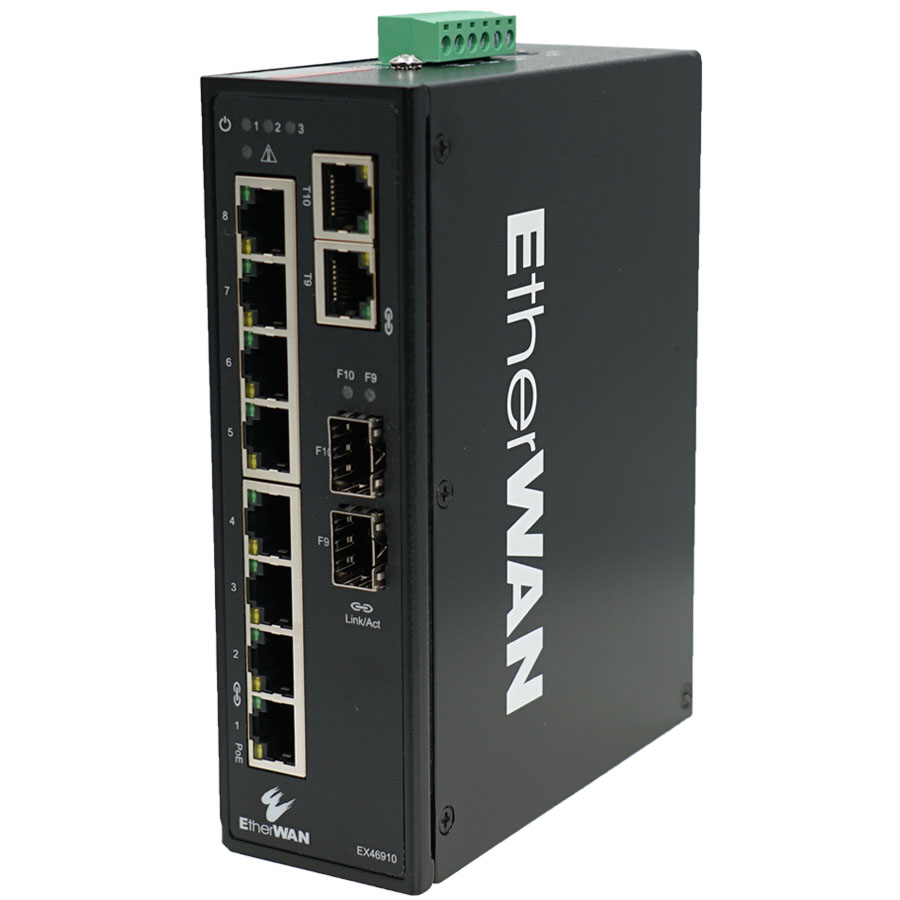

EtherWAN’s EX46910 is a compact hardened unmanaged DIN-rail mounted PoE switch. 8 gigabit PoE ports provide up to 30W output per port with a PoE power budget of 240W, ensuring that the maximum possible power is delivered to every device at all times. 2 combo uplink ports provide flexibility for data transmission and cascading. The EX46910 provides the power required to support various security and other network applications, along with flexibility, speed, and reliability to support networks where connectivity is crucial.
EtherWAN — "When Connectivity is Crucial."
Interface
- Ethernet
- 8 x 10/100/1000BASE-T(X)
- 2 x 1000BASE SFP/RJ45 Combo
- Alarm Contact
- 1 x Relay Output
- Current Capacity
- 1A@24VDC
- LED Indicators
- Per Unit: Power 1, Power 2, Power 3, Relay
- Per Port: Link/Activity
Technology
- Standards
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX/100BASE-FX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3z 1000BASE-X
- IEEE 802.3x full duplex and flow control
- IEEE 802.3af PoE
- IEEE 802.3at PoE+
- Forward/Filtering Rate
- 14,800pps for 10Mbps
- 148,810pps for 100Mbps
- 1,488,100pps for 1000Mbps
- Processing Type
- Store-and-forward
- Auto-negotiation
- Half-duplex back-pressure and full-duplex flow control
- Auto MDI/MDIX
Switch Properties and Performance
- Switching Fabric
- 20Gbps
- Jumbo Frame Size
- 10KB
- MAC Table Size
- 11K
- Packet Buffer Memory
- 2Mb
Power
- Input
- 48-56VDC redundant (terminal block) + 48-56VDC power DIN connector; 12-56VDC range for switch-only operation (no PoE)
- Power Consumption
- 5.76W max@48VDC, without PoE
- PoE Power Output
- Per Port: Up to 30W/port
- Power Budget: 240W
- Protection
- Reverse Polarity Protection
- Current Overload Protection
Physical
- Casing Material
- Aluminum
- IP Rating
- IP30
- Dimensions
- 1.89” x 4.72” x 6.1” (W x D x H)
48 x 120 x 155mm
- 1.89” x 4.72” x 6.1” (W x D x H)
- Weight
- 1lbs (0.45kg)
- Installation Type
- DIN-rail or wall/panel mounting
Environmental
- Operating Temp.
- -40 to 167°F (-40 to 75°C)
- Storage Temp.
- -40 to 185°F (-40 to 85°C)
- Relative Humidity
- 5% to 95% (non-condensing)
- MTBF
- >500,000 hours@50°C
Regulatory
- ISO
- Manufactured in ISO-9001 facility
- EMI
- FCC Part 15B Class A
- EN 55032
- EN 55024
- EMS
- EN 61000-4-2 (ESD)
- EN 61000-4-4 (Burst)
- EN 61000-4-5 (Surge)
- Safety
- UL 60950-1
- Vibration
- IEC 60068-2-6
- Shock
- IEC 60068-2-27
- Free Fall
- EN 60068-2-32
Warranty
- Length
- Limited Lifetime
- Details
What's Included
- Device
- Switch
- Installation
- Mounting brackets, screws, 6-pin terminal block
- Documentation
- Quick install guide
Model
| EX46910 | 8-port 10/100/1000BASE-T PoE + 2-port Combo Gigabit TX/SFP Ethernet Switch |
Accessories
| Hardened 100BASE SFP Modules | www.etherwan.com/products/sfp-fiber-transceiver |
| Hardened Gigabit SFP Modules | www.etherwan.com/products/sfp-fiber-transceiver |
| Power Supplies |
